RF Shielded Chambers

Discover LabiFix’s RF shielded chambers or rooms advanced, large-scale RF shielded enclosures designed for high-precision over-the-air (OTA) testing, antenna pattern measurement, MIMO validation, and full radiated performance evaluation of wireless devices. Built with premium welded construction and lined with high-performance pyramidal RF absorbers, these chambers deliver ultra-low reflection environments, simulating free-space conditions while providing superior EMI/RFI isolation (>90–100 dB typical across wide frequency ranges).

>90–100 dB IsolationISO 9001:2015 CertifiedCustom I/O Filters

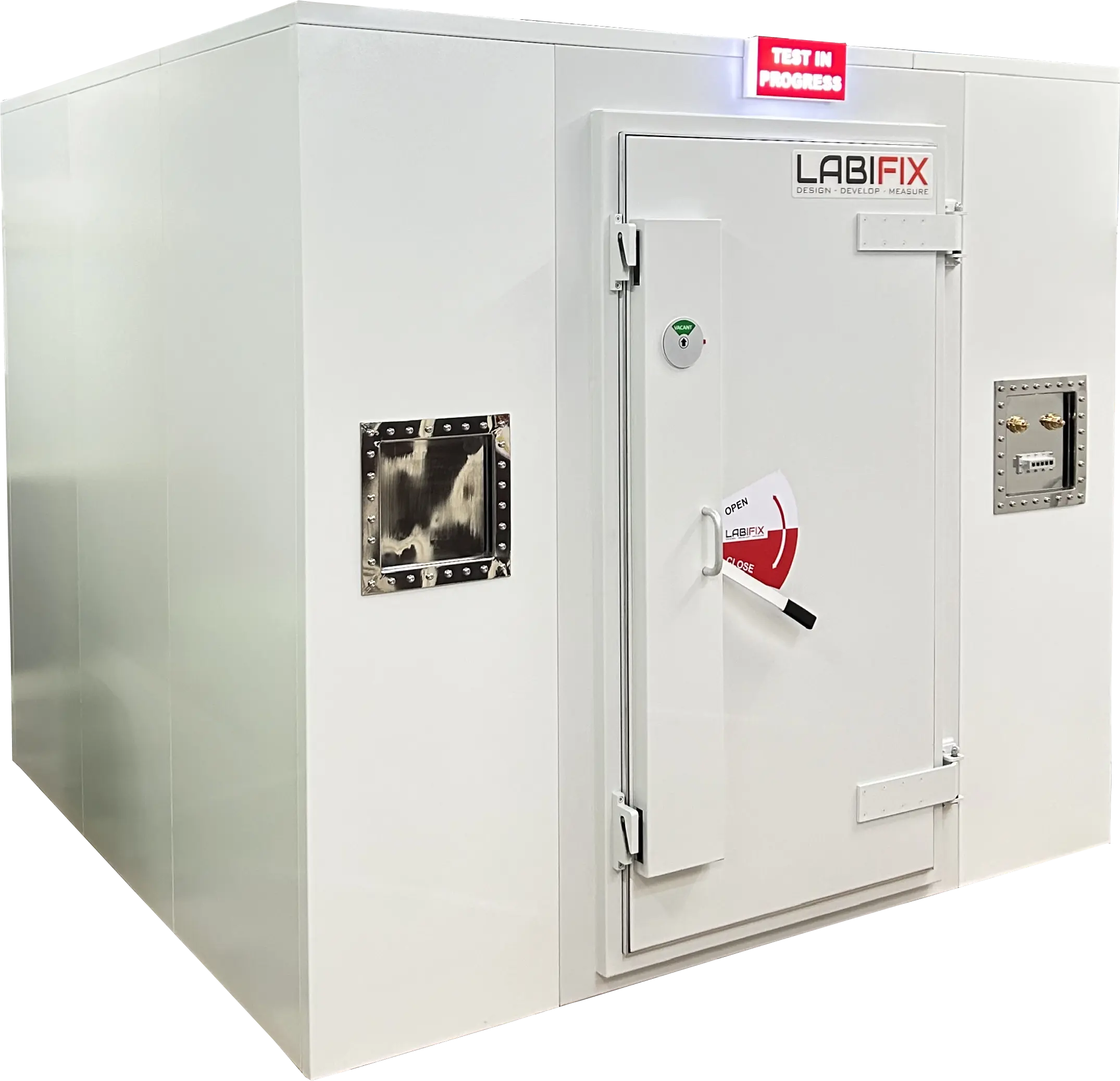

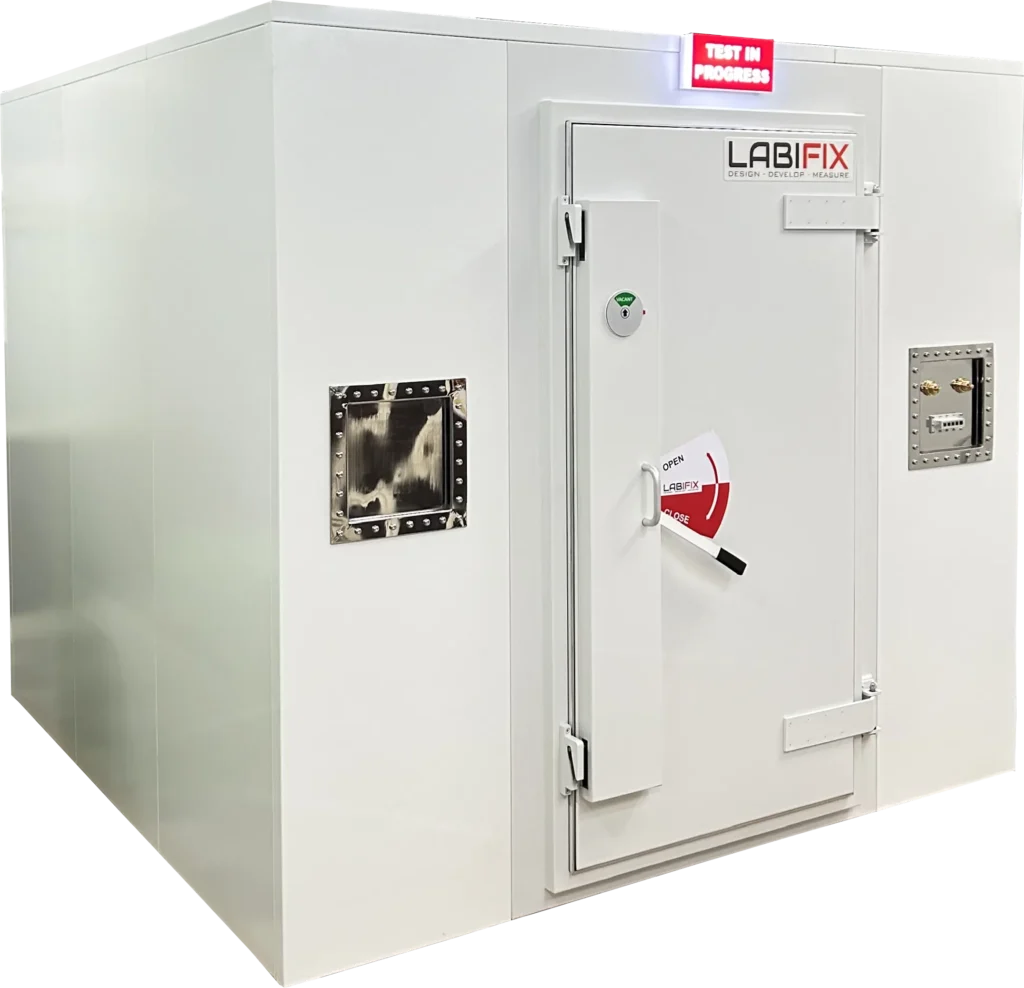

RF Shielded Chambers - LabiFix RF Shield Box Solution
Anechoic Chamber Test Facility100 MHz – 12 GHz+

Common Engineering Features & Standards

All LabiFix anechoic RF shielded chambers and rooms feature:

Premium pyramidal or hybrid RF absorber lining for quiet zones with reflection loss > 30–50 dB
High shielding effectiveness (> 90–100+ dB) combined with welded steel construction for leak-free performance
Large interior test volumes accommodating automated turntables, antenna masts, and multi-axis positioners
Configurable filtered penetrations including RF waveguides, optical fiber, and high-power filtered AC/DC lines
Compliance-ready for CTIA OTA, 3GPP radiated 5G NR, and EMC radiated immunity standards
Schedule a complimentary consultation or request a customized RF simulation model for your testing facility!

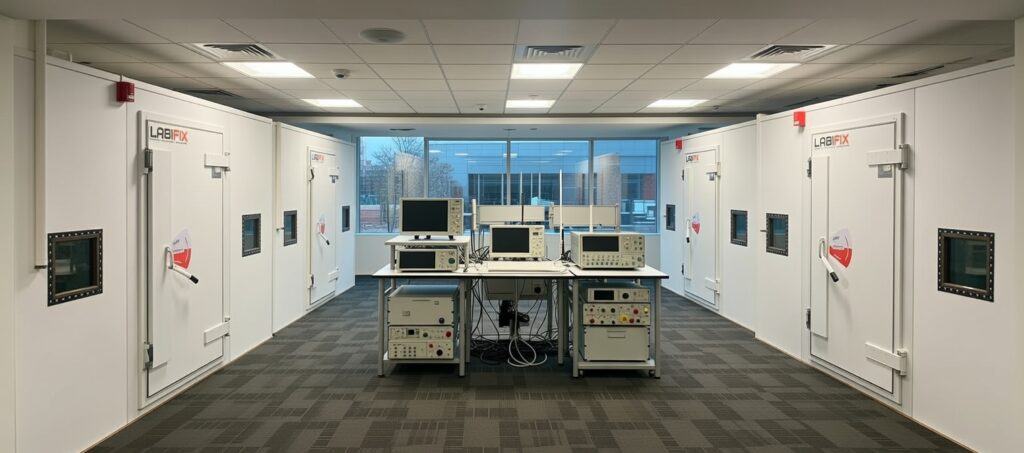

LabiFix Anechoic Shielded Chamber Facility

Customized RF Shielding Chambers & Anechoic Rooms

Tailored Engineering

Tailored Engineering

Custom dimensions, quiet zones, multi-axis positioners, and penetration panels engineered to test specifications.

Certified Shielding

Certified Shielding

High shielding effectiveness (> 90–100+ dB) certified for MIL-STD, CTIA OTA, and 3GPP radiated conformance.
